ReproIn/DataLad: A complete portable and reproducible fMRI study from scratch

Overview

Teaching: 15 min
Exercises: 15 min
Questions

  • How to implement a basic neuroimaging study with complete and unambiguous provenance tracking of all actions?

Objectives

  • Conduct portable and reproducible analyses with ReproIn and DataLad from the ground up.

Training instructions

This lesson needs the section2 software environment. With the following code we activate it, and create a directory for this lesson:

% cd ~
% source activate section2
% mkdir lesson-03-01
% cd lesson-03-01

There is a lot of material in this section, more than you will be able to go through in the available time. However, this level of detail should help to be able to go back to the lesson and explore everything a bit more. The two main sections of this lesson “Prepare the Data for Analysis” and “A Reproducible GLM Demo Analysis” are conceptually very similar. Both set up a dataset with all inputs of a data processing step, and then execute this step in a containerized computational environment. The differences between the sections reflect the inherent complexity of a real analysis. If you are short on time, focus on the section “Prepare the Data for Analysis” that demonstrates the essential idea of a complete input/output capture. Then skip through “A Reproducible GLM Demo Analysis” running just the code snippets (including those in the task solutions). The actual analysis run at the end of the section will take about 5 min that you can use to go back and look at the previous steps in more detail.

Introduction

In this lesson, we will carry out a full (although very basic) functional imaging study, going from raw data to complete data-analysis results. We will start from imaging data in DICOM format — as if we had just finished scanning. Importantly, we will conduct this analysis so that it

The following sections highlight a few core concepts that are instrumental for achieving these goals. For all steps of this study, we will use DataLad to achieve these goals with relatively minimal effort.

DataLad Extensions

DataLad itself is a data management package that is completely agnostic of data formats and analysis procedures. However, DataLad functionality can be extended via so-called extension packages that add additional support for particular data formats and workflows. In this lesson, we will make use of two extension packages: datalad-neuroimaging and datalad-container.

Joint Management of Data, Code, and Computional Environments

Comprehensive computational reproducibility of study results requires full capture of all analysis steps in a machine-executable form. This means that for each and every output file we must know precisely from which inputs a particular output was generated, and by which implementation of an algorithm. Therefore we must capture not just the precise version of any input data file, but additionally any custom code and software environment involved in a computation.

DataLad is capable of providing this comprehensive capture by being able to track source code in the same manner as (large) data files. Text files with code are managed directly with Git, while data file tracking and transport is performed by Git annex. This includes image files of containerized computational environments with all software needed to perform the desired computations. Via the mechanism of a Git submodule DataLad can connect two or more datasets. This connection enables lightweight version tracking of the entire content of a sub-dataset, without duplicating information or storage demands. Moreover, DataLad can transparently obtain subdataset content without requiring a user to maintain a copy of the directory structure of a subdataset.

ReproIn Convention

The figure above shows a schematic depiction of this comprehensive tracking. The dataset on the right tracks the state of three other dataset with input data. From those DataLad can automatically obtain any required input files for a computation which is implemented in code that is also tracked in this dataset. This code is executed by DataLad in a computational environment that is also tracked in the same dataset in the form of a container image file. From this comprehensive set of inputs the outputs are computed, and are also captured by DataLad in the same dataset.

In this lesson we will create two such datasets that represent two major components of any imaging study: 1) data conversion from raw DICOM format, and 2) data analysis for answering a specific research question. While the involved data files, code, computational environments will differ between these steps, the overall principle of comprehensive input and output capture is a common aspects shared between the two.

Modular Study Components

Imaging studies tend to involve rather complex, multi-step analyses. It is common that a single dataset is analyzed in multiple ways that in turn require different types of preprocessing. Accurate presentation of methods and results in a publication a precise understanding what exactly was done to which variant of data to produce a particular result. However, it can be very challenging to maintain this kind of awareness, especially in long-running projects that involve multiple researchers or even groups with non-overlapping responsibilities.

With DataLad’s dataset-subdataset linkage it is fairly straightforward to structure data processing in a study in modular units that enable standalone publication of intermediate steps and effortless re-use of (carefully validated) computational results.

ReproIn Convention

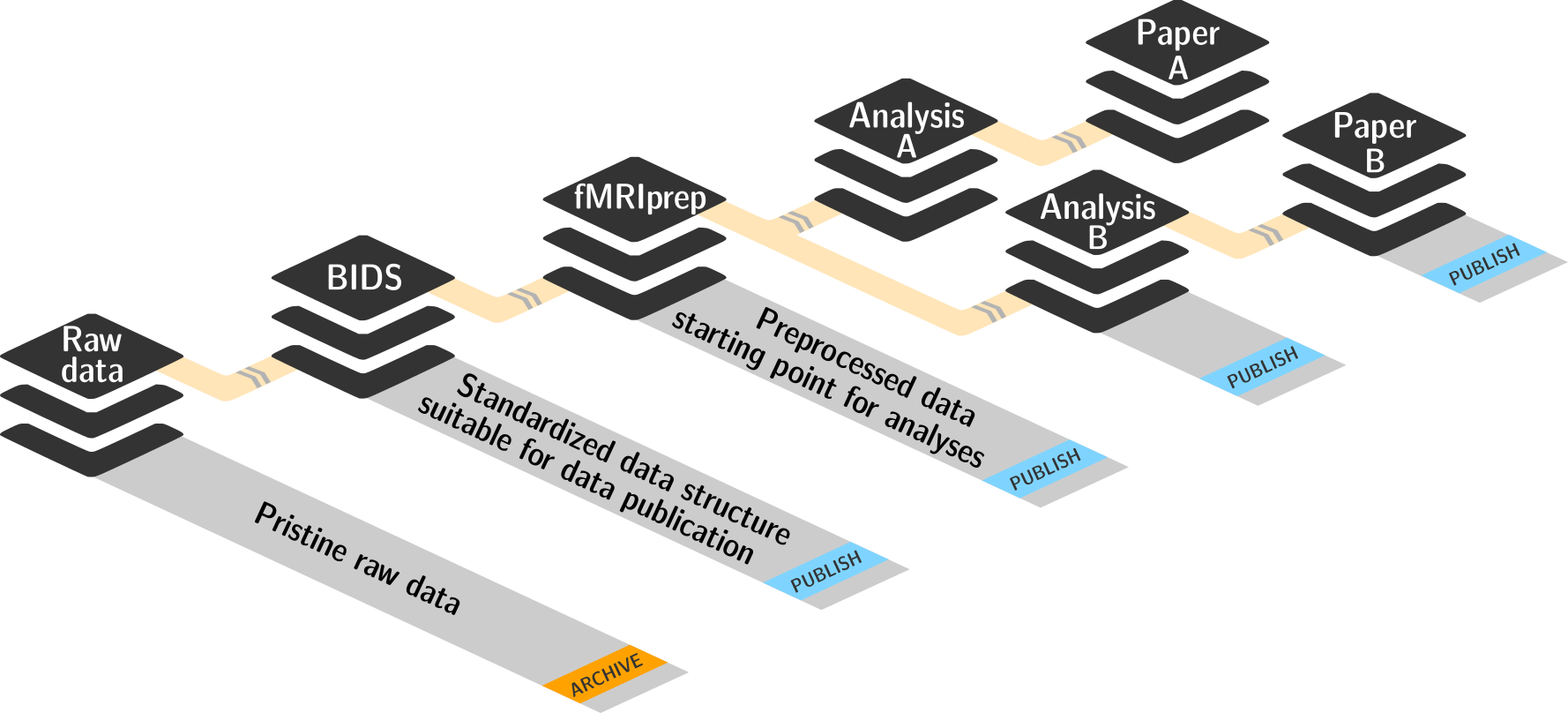

The above figure depicts a typical structure of data processing in an imaging study, going from acquired raw data, to a converted and standardized form, to preprocessed data, to one or more analysis implementations, to the respective publications. Key aspect here is that each of these steps is represented by a DataLad dataset that comprehensively tracks all inputs and outputs of a given step using the features described in the previous section. Each dataset can in turn be input to one or more additional data processing steps. While a single dataset only tracks its immediate inputs, DataLad is capable of resolving any input dependencies recursively across all subdataset levels (subdatasets of subdatasets of …). This makes it possible to discover the precise identity of data, code, and computational environments for any underlying computation – even years after a study was completed (given that each involved dataset was archived). Each modular component only has to be archived once, because it captures all states of its own evolution.

The two datasets created in this lesson represent two of those modular components: 1) imaging data in a standardized (BIDS) format, and 2) the outputs of an analysis (that includes a preprocessing step), where the second component is built atop the first component using its outputs as inputs for an analysis.

Facilitate Data Structure Standardization

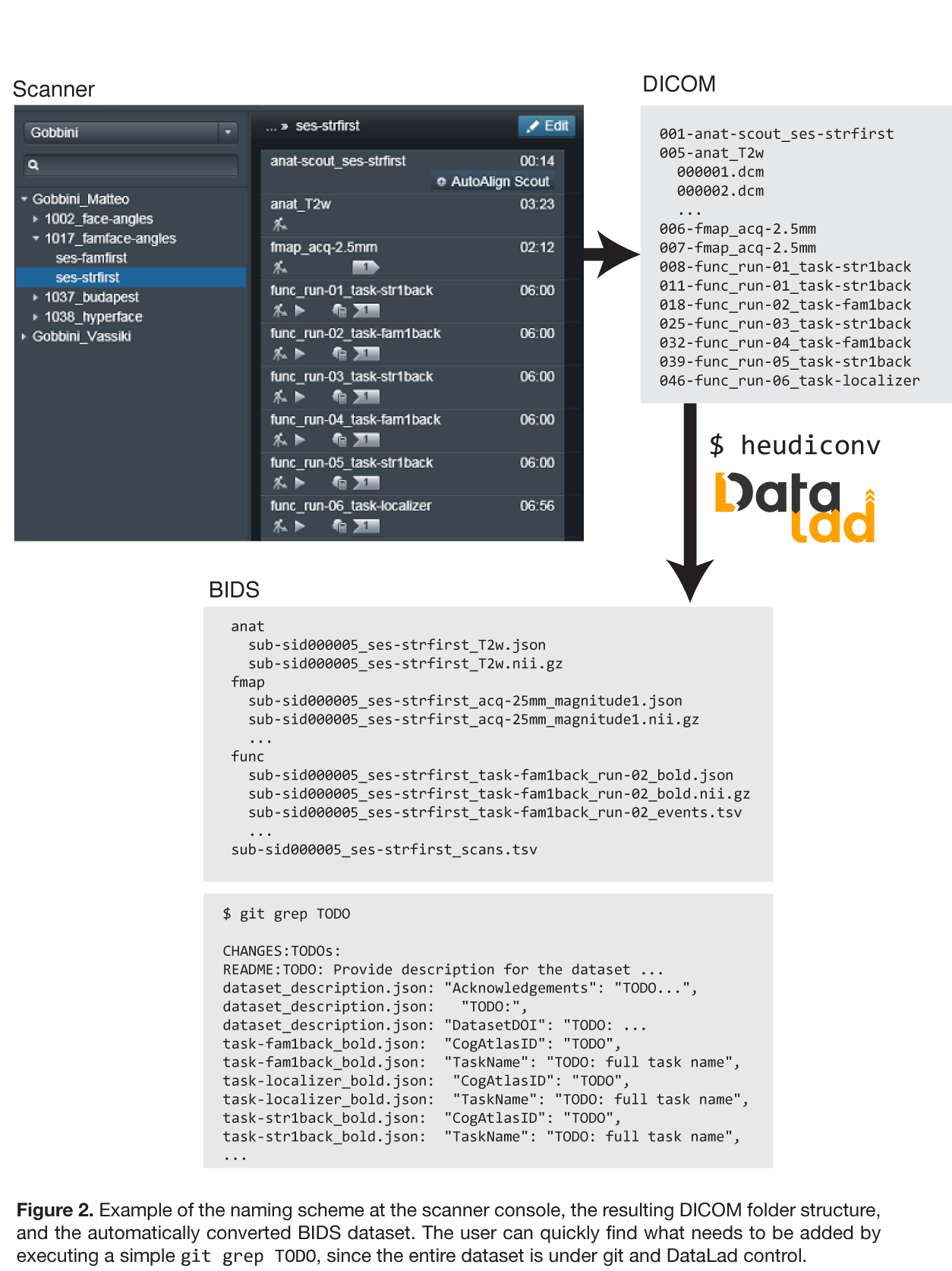

Our analysis will benefit from a standardization effort that was performed at the time of data acquisition. The metadata of the input DICOM images already contain all necessary information to identify the purpose of individual scans and encode essential properties into the filenames used in a BIDS-compliant dataset. The following figure illustrates how this critical information can be encoded into the acquisition protocol names at a scanner console when setting up a new study, by following the ReproIn naming conventions.

ReproIn Convention

Prepare the Data for Analysis

Before analyzing imaging data, we typically have to convert them from their original DICOM format into NIfTI files.

The data we are working with already follows the ReproIn naming conventions, and the HeuDiConv converter can use this information to automatically create a BIDS-compliant dataset for us.

We gain a lot here by adopting the BIDS standard. Up front, it saves us the effort of creating an ad-hoc directory structure. But more importantly, by structuring our data in a standard way (and an increasingly common one), it opens up possibilities for us to easily feed our dataset into existing analysis pipelines and tools.

Our first goal is to convert our DICOM data into a DataLad dataset in BIDS format.

Task: Create a new DataLad dataset called localizer_scans

Use the datalad create command

Solution

% datalad create localizer_scans

We now have the new dataset in the localizer_scans/ directory. We will change into this directory so that all further commands will be able to use relative paths.

% cd localizer_scans

You can start checking the commit history (running git log) to see what information DataLad captures from the very beginning of new dataset.

% git log

Advantages of Relative Path Specification

In many cases, it does not matter whether one uses absolute vs relative paths, but when it comes to portability, it has a great impact. Using relative paths makes it possible to move a dataset to another folder on your system (or give it to a colleague using a different computer) and still have everything intra-connected and working as it should.

When using DataLad, it is best to always run scripts from the root directory of the dataset — and also code all scripts to use paths that are relative to this root directory. For this to work, a dataset must contain all of the inputs of a processing step (all code, all data).

That means that we should add the raw DICOM files to our dataset. In our case, these DICOMs are already available in a DataLad dataset from GitHub that we can add as a subdataset to our localizer_scans dataset.

Task: Add DICOM data as a subdataset in inputs/rawdata

Use the datalad install command. Make sure to identify the localizer_scans dataset (the current directory) as the dataset to operate on in order to register the DICOMs as a subdataset (and not simply downloaded as a standalone dataset). Then, use the datalad subdatasets command to verify the result.

Solution

% datalad install --dataset . --source https://github.com/datalad/example-dicom-functional.git inputs/rawdata
% datalad subdatasets

Working With Containers

Any software you are using (and at any step) has the potential to have bugs/errors/horrifying-gremlins — and arguably already does, you just may not know it yet. Hence we take extra care to know exactly what software we are using and that we can go back to it at a later stage, should we have the need to investigate an issue.

Containerized computational environments are a great way to handle this problem. DataLad (via its datalad-container extension) provides support for using and managing such environments for data processing. We can add an image of a computational environment to a DataLad dataset (just like any other) file, so we know exactly what we are using and where to get it again in the future.

A ready-made singularity container with the HeuDiConv DICOM converter (~160 MB) is available from singularity-hub at: shub://ReproNim/ohbm2018-training:heudiconvn (a local copy is available at ~/images/heudiconv.simg in the training VM).

Task: Add the HeuDiConv container to the dataset

Use the datalad containers-add command to add this container under the name heudiconv. Then use the datalad containers-list command to verify that everything worked.

Solution

% # In the training, to save on downloads, we will use a local copy that is saved in ~/images.
% # But first tune up git annex configuration to allow to reference local
% # files:
% git config --global 'annex.security.allowed-url-schemes' 'http https file'
% datalad containers-add heudiconv --url ~/images/heudiconv.simg \
      --call-fmt 'singularity exec {img} {cmd}'
% datalad containers-list
% # Additional comments, please do NOT run it during training:
% # regular call that downloads image from Singularity Hub (instead of using a local copy):
% # datalad containers-add heudiconv --url shub://ReproNim/ohbm2018-training:heudiconvn

Our dataset now tracks all input data and the computational environment for the DICOM conversion. This means that we have a complete record of all components (thus far) in this one dataset that we can reference via relative paths from the dataset root. This is a good starting point for conducting a portable analysis.

datalad run and datalad containers-run (provided by the datalad-container extension) allow a user to run arbitrary shell commands and capture the output in a dataset. By design, both commands behave nearly identically. The primary difference is that datalad run executes commands in the local environment, whereas datalad containers-run executes commands inside of a containerized environment. Here, we will use the latter.

Task: Convert DICOM using HeuDiConv from the container

An appropriate HeuDiConv command looks like this:

heudiconv -f reproin -s 02 -c dcm2niix -b -l "" --minmeta -a . \
    -o /tmp/heudiconv.sub-02 --files inputs/rawdata/dicoms

It essentially tells it to use the ReproIn heuristic to convert the DICOMs using the subject identifier 02, with the DICOM converter dcm2niix, into the BIDS format. The last argument is the directory containing the DICOMs.

Run this command using datalad containers-run, making sure to include a meaningful commit message, so that the results of this command are saved with a meaningful context. If anything goes wrong when running the command, remember that you can use git reset --hard on the dataset repository to throw away anything that is not yet committed.

Once done, use the datalad diff command to compare the dataset to the previous saved state (HEAD~1) to get an instant summary of the changes.

Solution

It is sufficient to prefix the original command line call with datalad containers-run.

% datalad containers-run -m "Convert sub-02 DICOMs into BIDS" \
      --container-name heudiconv \
      heudiconv -f reproin -s 02 -c dcm2niix -b -l "" --minmeta -a . \
      -o /tmp/heudiconv.sub-02 --files inputs/rawdata/dicoms
% datalad diff --revision HEAD~1

It is not strictly necessary to specify the name of the container to be used. If there is only one container known to a dataset, datalad containers-run is clever enough to use that one.

You can now confirm that a NIfTI file has been added to the dataset and that its name is compliant with the BIDS standard. Information such as the task-label has been automatically extracted from the imaging sequence description.

There is only one thing missing before we can analyze our functional imaging data: we need to know what stimulation was done at which point during the scan. Thankfully, the data was collected using an implementation that exported this information directly in the BIDS events.tsv format. The file came with our DICOM dataset and can be found at inputs/rawdata/events.tsv. All we need to do is copy it to the right location under the BIDS-mandated name.

We can use cp to do this easily, but the copying step itself would not be entered into the dataset’s history and thus the file would be added with no indication of where it came from. A good commit message can help with that, but what would be even better is to run cp using datalad run to capture this information.

Task: Copy the event.tsv file to its correct location via run

BIDS requires that this file be located at sub-02/func/sub-02_task-oneback_run-01_events.tsv. Use the datalad run command to execute the cp command to implement this step. This time, however, use the options --input and --output to inform datalad run what files need to be available and what locations need to be writeable for this command.

In order to avoid duplication, datalad run supports placeholder labels that you can use in the command specification itself.

Use git log to investigate what information DataLad captured about this command’s execution.

Solution

Prefix the original command line call with datalad run -m "<some message>" --input <input file> --output <output file> and replace those files in the original command by {inputs} and {outputs} respectively.

% datalad run -m "Import stimulation events" \
      --input inputs/rawdata/events.tsv \
      --output sub-02/func/sub-02_task-oneback_run-01_events.tsv \
      cp {inputs} {outputs}
% git log -p

We are now done with the data preparation. We have the skeleton of a BIDS-compliant dataset that contains all data in the right format and using the correct file names. In addition, the computational environment used to perform the DICOM conversion is tracked, as well as a separate dataset with the input DICOM data. This means we can trace every single file in this dataset back to its origin, including the commands and inputs used to create it.

This dataset is now ready. It can be archived and used as input for one or more analyses of any kind. Let’s leave the dataset directory now:

% cd ..
